Matrix Recessed Apparecchi da incasso per illuminazione lineare
Apparecchio da incasso a terra lineare, calpestabile fino ai 500Kg. Viene dotato di ottiche secondarie per diverse distribuzioni della luce, utili per l'illuminazione radente di facciate e elementi architettonici, o di vetro acidato per una distribuzione diffusa unita al controllo dell'abbagliamento che lo rende adatto per i percorsi pedonali. Disponibile anche RGBW.
Tipo di installazione
Incasso a terra
Corpo
Alluminio estruso
Box
Lamiera di Acciaio Inox AISI430F
Cornice
Acciaio satinato AISI316
Schermo
Vetro extrachiaro temperato da 8 mm serigrafato
Guarnizioni
Gomma EPDM a celle chiuse
Viteria
Acciaio Inox A2

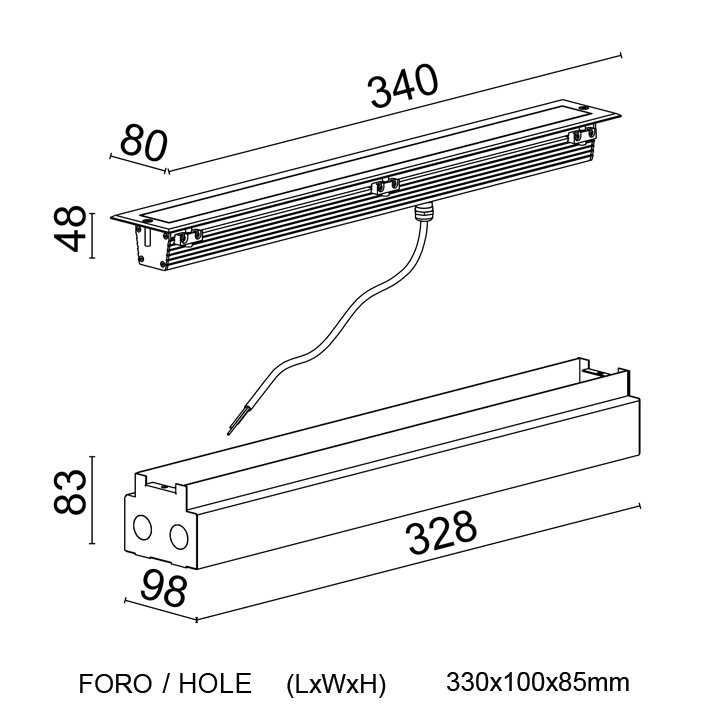

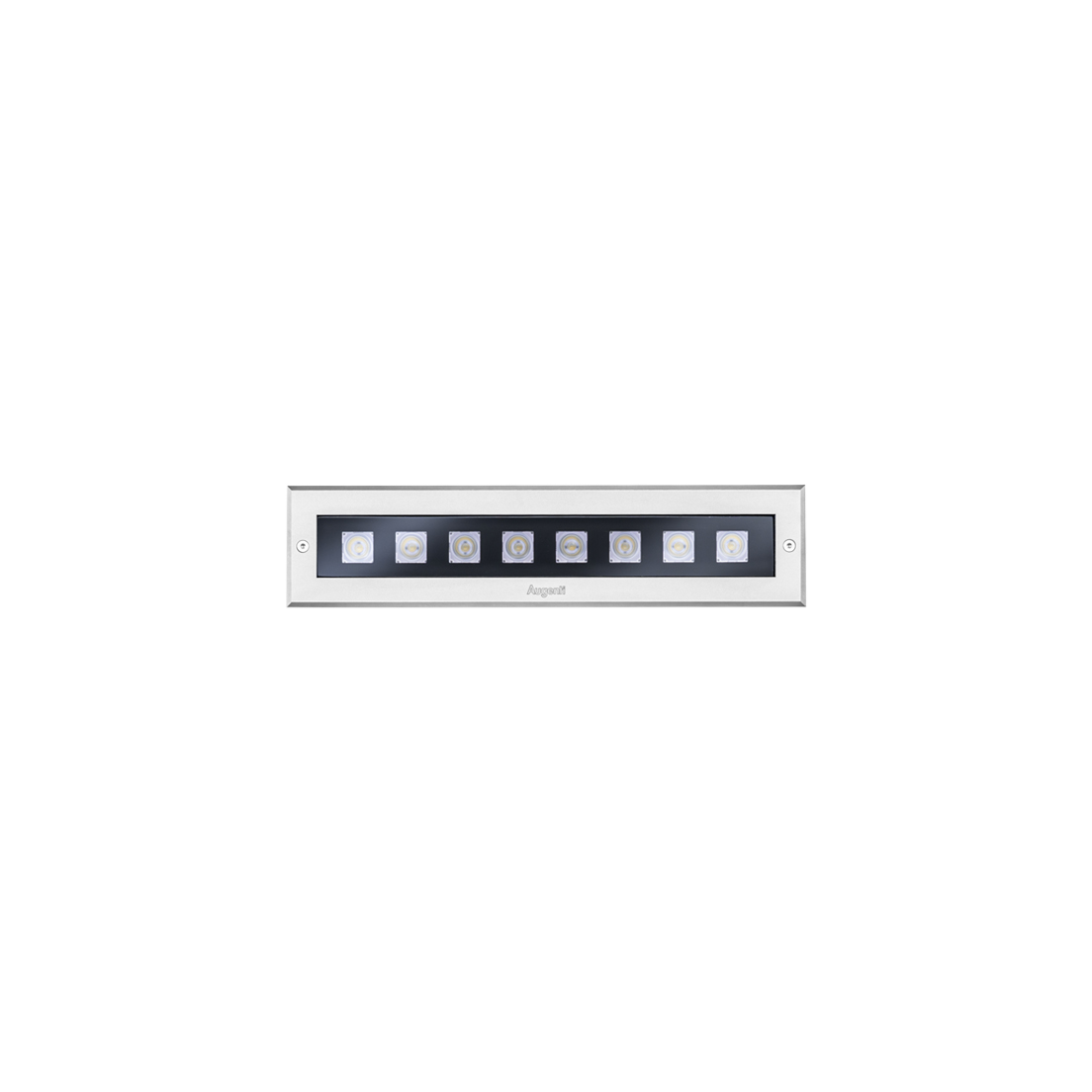

Wallwasher ad incasso con Lenti L. 340
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HP50.NB99 |  Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.MB99 |  Medio/28° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.OB99 |  Ovale/42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.WB99 |  Largo/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/HP50.AB99 |  Asimmetrico |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1159 lm | 2700K |
| 2800R/WP50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.MB99 | Medio/28° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.OB99 | Ovale/42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.WB99 | Largo/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/WP50.AB99 | Asimmetrico |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1220 lm | 3000K |
| 2800R/NP50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.MB99 | Medio/28° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.OB99 | Ovale/42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.WB99 | Largo/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
| 2800R/NP50.AB99 | Asimmetrico |
I | 67 | 14W | 220-240Vac 50/60Hz | ON/OFF | 1281 lm | 4000K |
Wallwasher DALI ad incasso con Lenti L. 340
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HD50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1159 lm | 2700K |
| 2800R/HD50.MB99 | Medio/28° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1159 lm | 2700K |
| 2800R/HD50.OB99 | Ovale/42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1159 lm | 2700K |
| 2800R/HD50.WB99 | Largo/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1159 lm | 2700K |
| 2800R/HD50.AB99 | Asimmetrico |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1159 lm | 2700K |
| 2800R/WD50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1220 lm | 3000K |
| 2800R/WD50.MB99 | Medio/28° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1220 lm | 3000K |
| 2800R/WD50.OB99 | Ovale/42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1220 lm | 3000K |
| 2800R/WD50.WB99 | Largo/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1220 lm | 3000K |
| 2800R/WD50.AB99 | Asimmetrico |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1220 lm | 3000K |
| 2800R/ND50.NB99 | Spot/12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1281 lm | 4000K |
| 2800R/ND50.MB99 | Medio/28° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1281 lm | 4000K |
| 2800R/ND50.OB99 | Ovale/42°x12° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1281 lm | 4000K |
| 2800R/ND50.WB99 | Largo/50° |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1281 lm | 4000K |
| 2800R/ND50.AB99 | Asimmetrico |
I | 67 | 14W | 220-240Vac 50/60Hz | DALI-2 integrato | 1281 lm | 4000K |

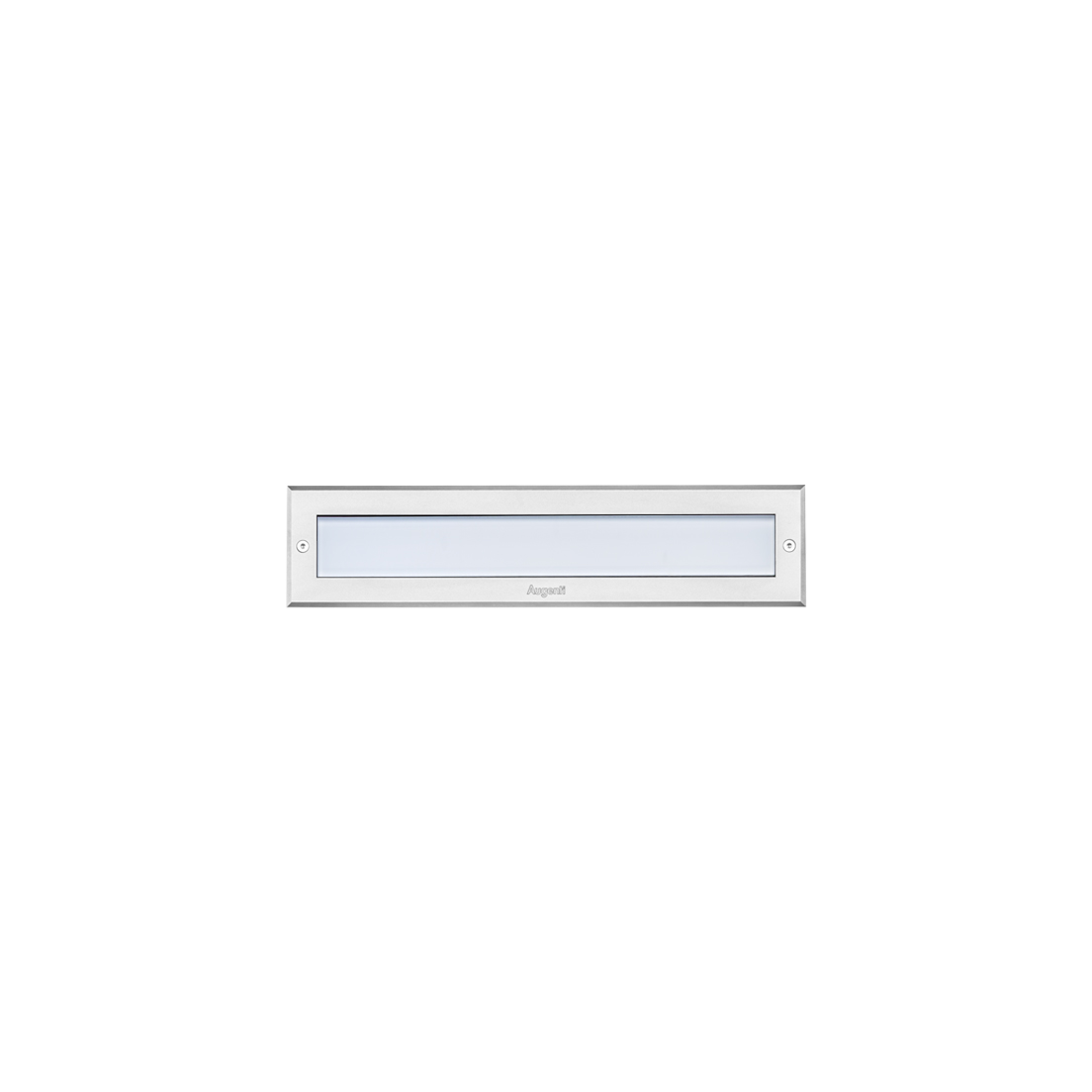

Wallwasher ad incasso Emissione Diffusa L. 340
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HR50VS.99 |  Diffuso |
I | 67 | 8W | 220-240Vac 50/60Hz | ON/OFF | 322 lm | 2700K |
| 2800R/WR50VS.99 | Diffuso |
I | 67 | 8W | 220-240Vac 50/60Hz | ON/OFF | 339 lm | 3000K |
| 2800R/NR50VS.99 | Diffuso |
I | 67 | 8W | 220-240Vac 50/60Hz | ON/OFF | 357 lm | 4000K |
Wallwasher DALI ad incasso Emissione Diffusa L. 340
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2800R/HD50VS.99 | Diffuso |
I | 67 | 8W | 220-240Vac 50/60Hz | DALI-2 integrato | 322 lm | 2700K |
| 2800R/WD50VS.99 | Diffuso |
I | 67 | 8W | 220-240Vac 50/60Hz | DALI-2 integrato | 339 lm | 3000K |
| 2800R/ND50VS.99 | Diffuso |
I | 67 | 8W | 220-240Vac 50/60Hz | DALI-2 integrato | 357 lm | 4000K |

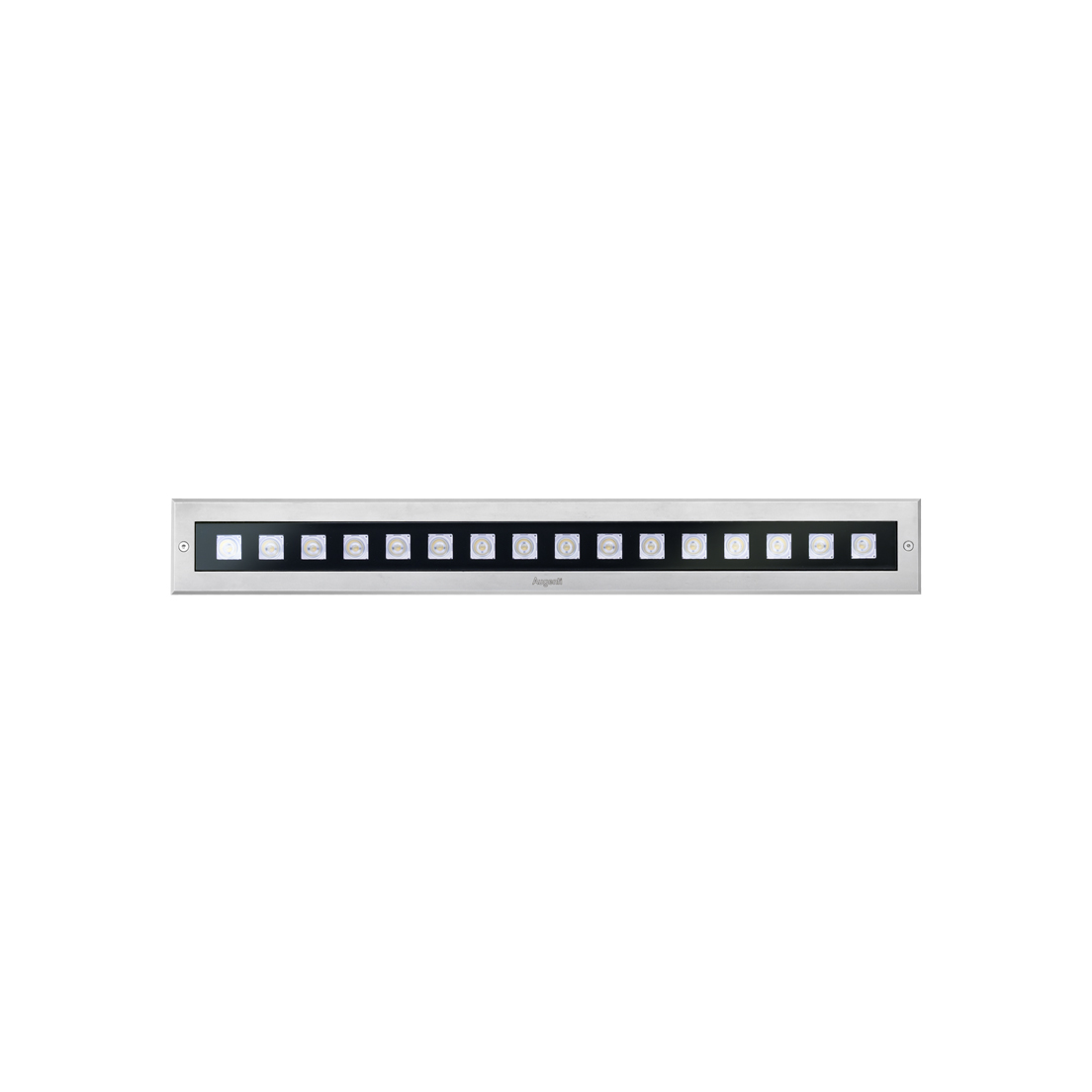

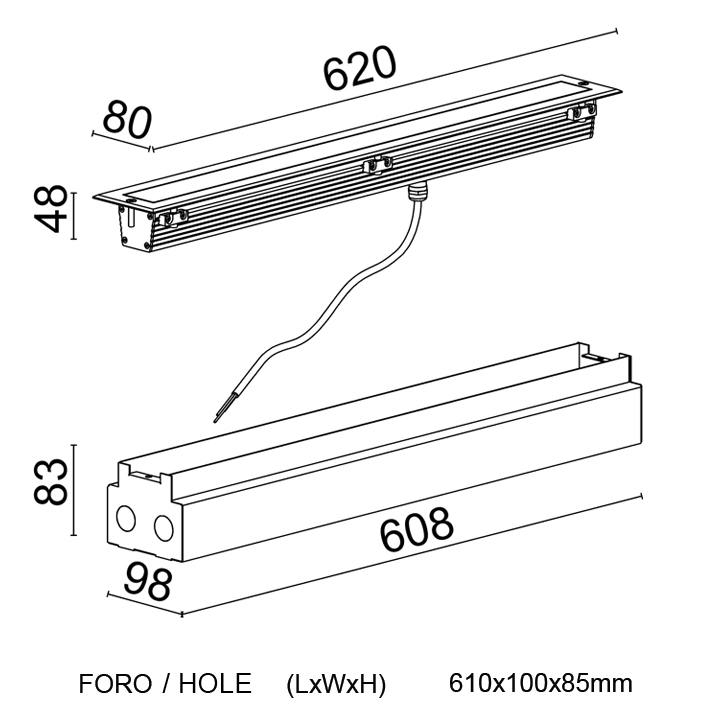

Wallwasher ad incasso con Lenti L. 620
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HP50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.MB99 | Medio/28° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.OB99 | Ovale/42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.WB99 | Largo/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/HP50.AB99 | Asimmetrico |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2318 lm | 2700K |
| 2801R/WP50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.MB99 | Medio/28° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.OB99 | Ovale/42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.WB99 | Largo/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/WP50.AB99 | Asimmetrico |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2440 lm | 3000K |
| 2801R/NP50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.MB99 | Medio/28° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.OB99 | Ovale/42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.WB99 | Largo/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
| 2801R/NP50.AB99 | Asimmetrico |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 2562 lm | 4000K |
Wallwasher DALI ad incasso con Lenti L. 620
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HD50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2318 lm | 2700K |
| 2801R/HD50.MB99 | Medio/28° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2318 lm | 2700K |
| 2801R/HD50.OB99 | Ovale/42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2318 lm | 2700K |
| 2801R/HD50.WB99 | Largo/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2318 lm | 2700K |
| 2801R/HD50.AB99 | Asimmetrico |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2318 lm | 2700K |
| 2801R/WD50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2440 lm | 3000K |
| 2801R/WD50.MB99 | Medio/28° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2440 lm | 3000K |
| 2801R/WD50.OB99 | Ovale/42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2440 lm | 3000K |
| 2801R/WD50.WB99 | Largo/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2440 lm | 3000K |
| 2801R/WD50.AB99 | Asimmetrico |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2440 lm | 3000K |
| 2801R/ND50.NB99 | Spot/12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2562 lm | 4000K |
| 2801R/ND50.MB99 | Medio/28° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2562 lm | 4000K |
| 2801R/ND50.OB99 | Ovale/42°x12° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2562 lm | 4000K |
| 2801R/ND50.WB99 | Largo/50° |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2562 lm | 4000K |
| 2801R/ND50.AB99 | Asimmetrico |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 2562 lm | 4000K |
Wallwasher ad incasso Emissione Diffusa L. 620
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HR50VS.99 | Diffuso |
I | 67 | 13W | 220-240Vac 50/60Hz | ON/OFF | 644 lm | 2700K |
| 2801R/WR50VS.99 | Diffuso |
I | 67 | 13W | 220-240Vac 50/60Hz | ON/OFF | 678 lm | 3000K |
| 2801R/NR50VS.99 | Diffuso |
I | 67 | 13W | 220-240Vac 50/60Hz | ON/OFF | 718 lm | 4000K |
Wallwasher DALI ad incasso Emissione Diffusa L. 620
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2801R/HD50VS.99 | Diffuso |
I | 67 | 13W | 220-240Vac 50/60Hz | DALI-2 integrato | 644 lm | 2700K |
| 2801R/WD50VS.99 | Diffuso |
I | 67 | 13W | 220-240Vac 50/60Hz | DALI-2 integrato | 678 lm | 3000K |
| 2801R/ND50VS.99 | Diffuso |
I | 67 | 13W | 220-240Vac 50/60Hz | DALI-2 integrato | 718 lm | 4000K |

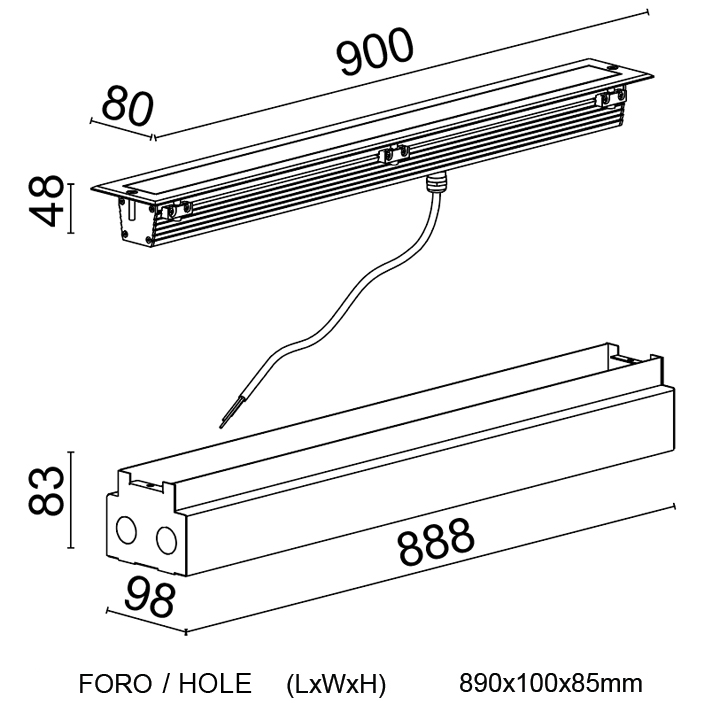

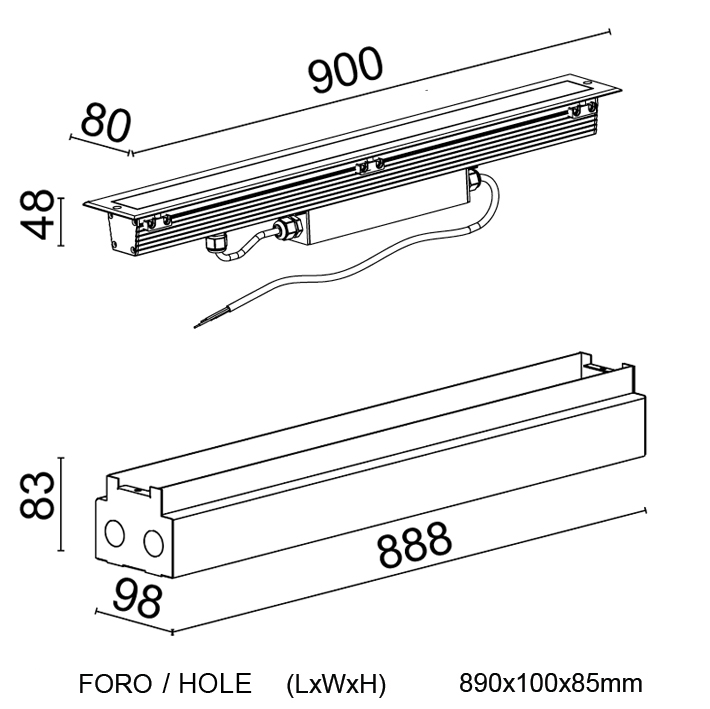

Wallwasher ad incasso con Lenti L. 900
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HP50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.MB99 | Medio/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.OB99 | Ovale/42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.WB99 | Largo/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/HP50.AB99 | Asimmetrico |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3477 lm | 2700K |
| 2802R/WP50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.MB99 | Medio/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.OB99 | Ovale/42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.WB99 | Largo/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/WP50.AB99 | Asimmetrico |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3660 lm | 3000K |
| 2802R/NP50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.MB99 | Medio/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.OB99 | Ovale/42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.WB99 | Largo/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
| 2802R/NP50.AB99 | Asimmetrico |
I | 67 | 42W | 220-240Vac 50/60Hz | ON/OFF | 3843 lm | 4000K |
Wallwasher DALI ad incasso con Lenti L. 900
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HD50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3477 lm | 2700K |
| 2802R/HD50.MB99 | Medio/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3477 lm | 2700K |
| 2802R/HD50.OB99 | Ovale/42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3477 lm | 2700K |
| 2802R/HD50.WB99 | Largo/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3477 lm | 2700K |
| 2802R/HD50.AB99 | Asimmetrico |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3477 lm | 2700K |
| 2802R/WD50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3660 lm | 3000K |
| 2802R/WD50.MB99 | Medio/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3660 lm | 3000K |
| 2802R/WD50.OB99 | Ovale/42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3660 lm | 3000K |
| 2802R/WD50.WB99 | Largo/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3660 lm | 3000K |
| 2802R/WD50.AB99 | Asimmetrico |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3660 lm | 3000K |
| 2802R/ND50.NB99 | Spot/12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3843 lm | 4000K |
| 2802R/ND50.MB99 | Medio/28° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3843 lm | 4000K |
| 2802R/ND50.OB99 | Ovale/42°x12° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3843 lm | 4000K |
| 2802R/ND50.WB99 | Largo/50° |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3843 lm | 4000K |
| 2802R/ND50.AB99 | Asimmetrico |
I | 67 | 42W | 220-240Vac 50/60Hz | DALI-2 integrato | 3843 lm | 4000K |
Wallwasher ad incasso Emissione Diffusa L. 900
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HR50VS.99 | Diffuso |
I | 67 | 19W | 220-240Vac 50/60Hz | ON/OFF | 969 lm | 2700K |
| 2802R/WR50VS.99 | Diffuso |
I | 67 | 19W | 220-240Vac 50/60Hz | ON/OFF | 1020 lm | 3000K |
| 2802R/NR50VS.99 | Diffuso |
I | 67 | 19W | 220-240Vac 50/60Hz | ON/OFF | 1076 lm | 4000K |
Wallwasher DALI ad incasso Emissione Diffusa L. 900
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2802R/HD50VS.99 | Diffuso |
I | 67 | 19W | 220-240Vac 50/60Hz | DALI-2 integrato | 969 lm | 2700K |
| 2802R/WD50VS.99 | Diffuso |
I | 67 | 19W | 220-240Vac 50/60Hz | DALI-2 integrato | 1020 lm | 3000K |
| 2802R/ND50VS.99 | Diffuso |
I | 67 | 19W | 220-240Vac 50/60Hz | DALI-2 integrato | 1076 lm | 4000K |

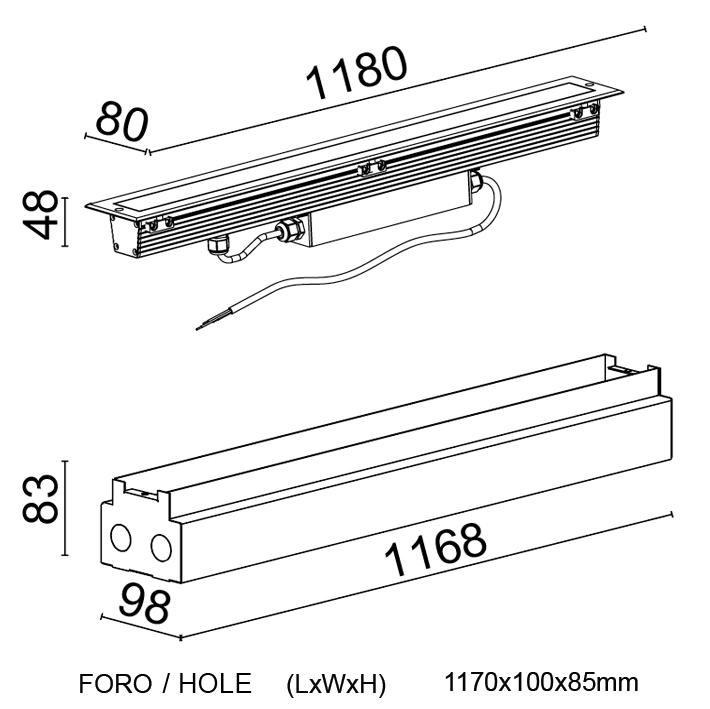

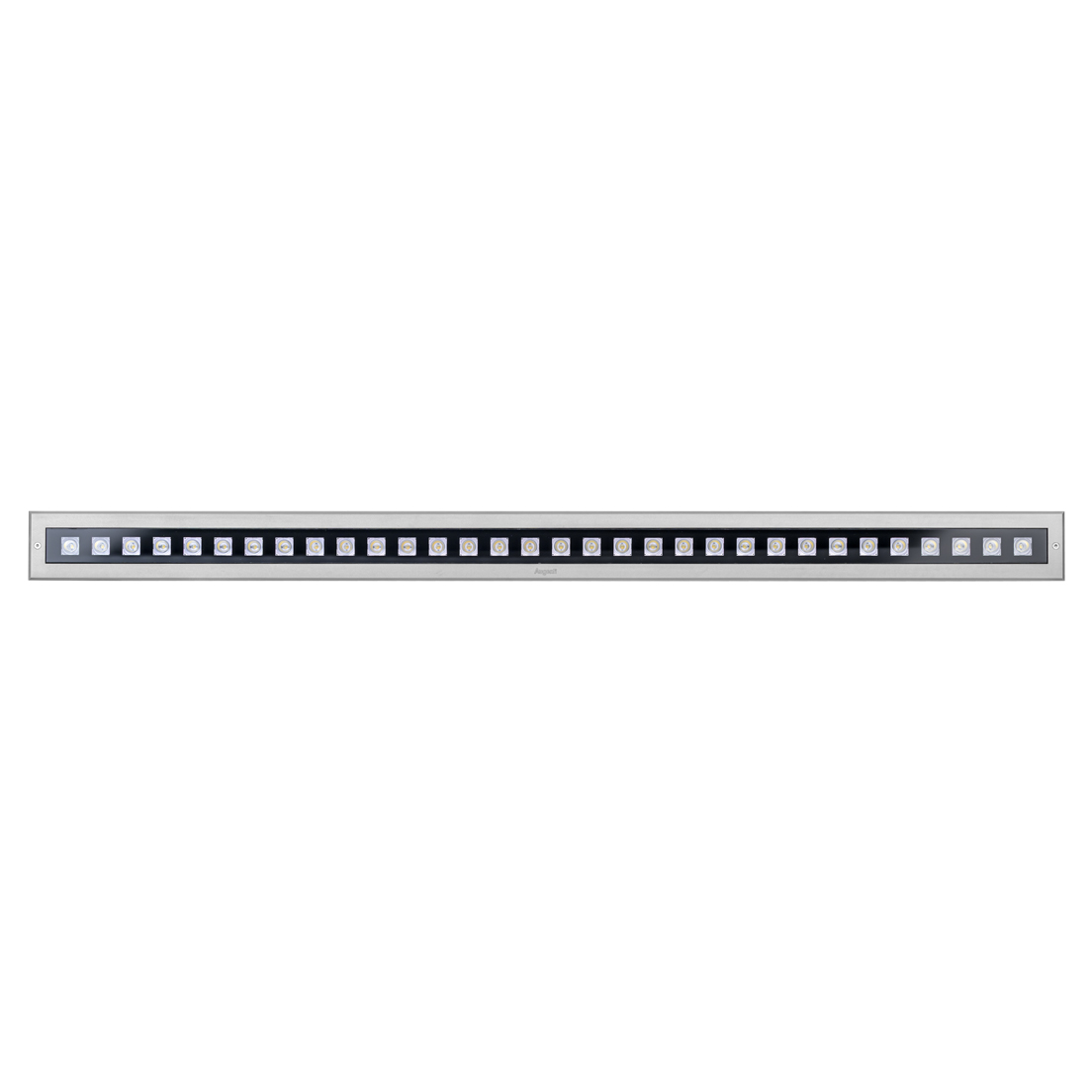

Wallwasher ad incasso con Lenti L. 1180
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HP50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.MB99 | Medio/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.OB99 | Ovale/42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.WB99 | Largo/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/HP50.AB99 | Asimmetrico |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4636 lm | 2700K |
| 2803R/WP50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.MB99 | Medio/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.OB99 | Ovale/42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.WB99 | Largo/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/WP50.AB99 | Asimmetrico |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 4880 lm | 3000K |
| 2803R/NP50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.MB99 | Medio/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.OB99 | Ovale/42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.WB99 | Largo/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
| 2803R/NP50.AB99 | Asimmetrico |
I | 67 | 54W | 220-240Vac 50/60Hz | ON/OFF | 5124 lm | 4000K |
Wallwasher DALI ad incasso con Lenti L. 1180
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HD50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4636 lm | 2700K |
| 2803R/HD50.MB99 | Medio/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4636 lm | 2700K |
| 2803R/HD50.OB99 | Ovale/42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4636 lm | 2700K |
| 2803R/HD50.WB99 | Largo/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4636 lm | 2700K |
| 2803R/HD50.AB99 | Asimmetrico |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4636 lm | 2700K |
| 2803R/WD50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4880 lm | 3000K |
| 2803R/WD50.MB99 | Medio/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4880 lm | 3000K |
| 2803R/WD50.OB99 | Ovale/42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4880 lm | 3000K |
| 2803R/WD50.WB99 | Largo/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4880 lm | 3000K |
| 2803R/WD50.AB99 | Asimmetrico |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 4880 lm | 3000K |
| 2803R/ND50.NB99 | Spot/12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 5124 lm | 4000K |
| 2803R/ND50.MB99 | Medio/28° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 5124 lm | 4000K |
| 2803R/ND50.OB99 | Ovale/42°x12° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 5124 lm | 4000K |
| 2803R/ND50.WB99 | Largo/50° |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 5124 lm | 4000K |
| 2803R/ND50.AB99 | Asimmetrico |
I | 67 | 54W | 220-240Vac 50/60Hz | DALI-2 integrato | 5124 lm | 4000K |

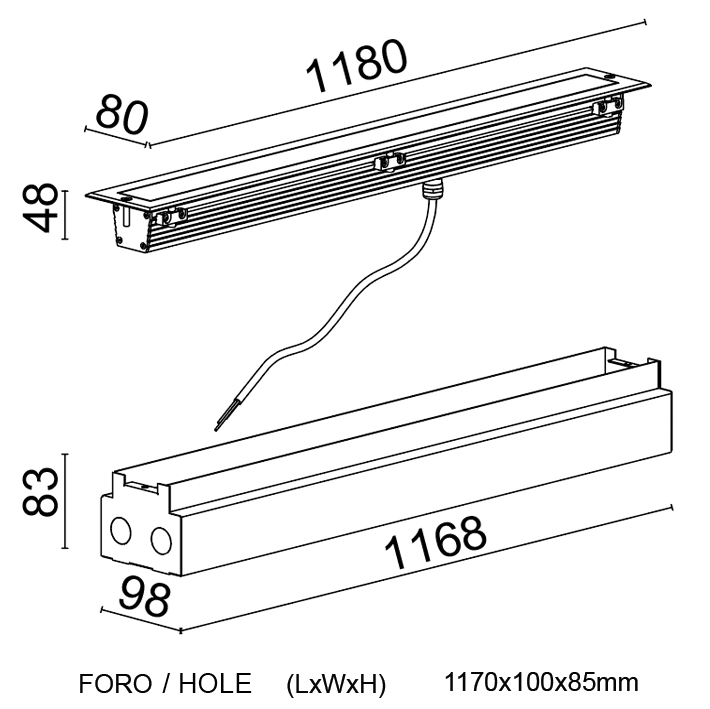

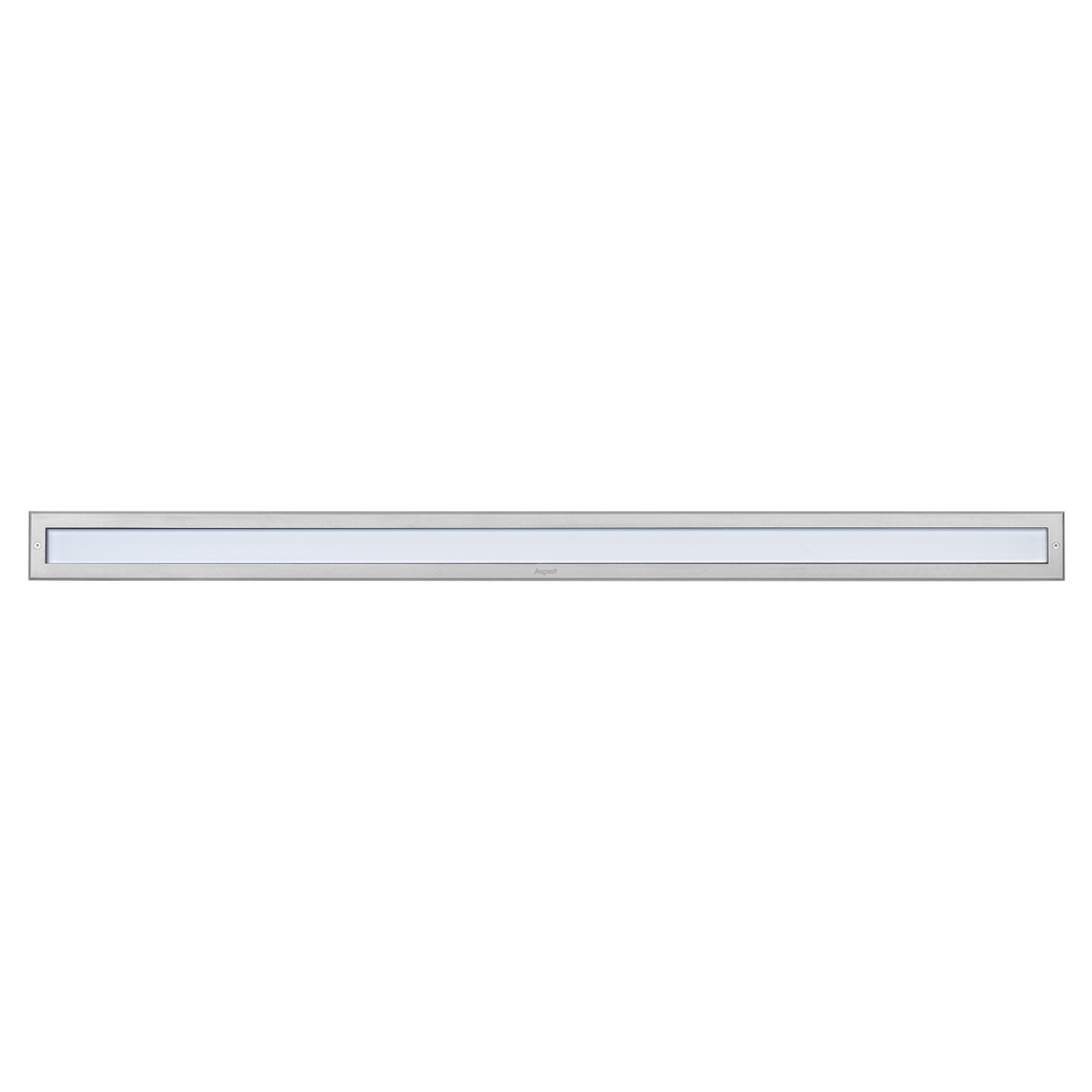

Wallwasher ad incasso Emissione Diffusa L. 1180
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HR50VS.99 | Diffuso |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 1287 lm | 2700K |
| 2803R/WR50VS.99 | Diffuso |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 1355 lm | 3000K |
| 2803R/NR50VS.99 | Diffuso |
I | 67 | 26W | 220-240Vac 50/60Hz | ON/OFF | 1435 lm | 4000K |
Wallwasher DALI ad incasso Emissione Diffusa L. 1180
| Codice | Fascio | Classe | IP | W | Alimentazione | Controllo | Apparecchio | CCT LED |
|---|---|---|---|---|---|---|---|---|
| 2803R/HD50VS.99 | Diffuso |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 1287 lm | 2700K |
| 2803R/WD50VS.99 | Diffuso |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 1355 lm | 3000K |
| 2803R/ND50VS.99 | Diffuso |
I | 67 | 26W | 220-240Vac 50/60Hz | DALI-2 integrato | 1435 lm | 4000K |
